Product Details:
Payment & Shipping Terms:
|
| Blade Length:: | 6in, 6 1/2in, 10in | Customized Support: | OEM, ODM, OBM |
|---|---|---|---|
| Size: | 205/230/255/305/355/405/455/500/550/600 | Color: | Picture Shows |
| Grade: | Industrial | Product Name: | TCT Metal Cutting Saw Blade For Power Tools |
| Feature: | High Speed.Straight Smooth Edge | Packing: | Standard Packing |
| Advantage: | High Efficiency, Low Noise, High Speed,Excellent Wear Resistance, Heat Resistance, Long Linfespan.electricity Saving | Keywords: | Wood Circular Saw Disc |
| Usage: | Cut Ceramic, Wood, Hard Wood Material Cutting | Blade Thickness: | 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in, Customized |
| Teeths: | 140, 144, Customized | Process Type: | HOT PRESS, High Frequency Welded, Laser Welded, Cold PRESS, Customized |
| Suitable Machine: | Circular Saw, Miter Saw, Table Saw, Radial Arm Saw | Blade Material: | TCT, Alloy, Diamond, Tungsten Carbide Steel, HSS |
| Warranty: | 1 Year, One Year, 12 Months | ||
| High Light: | 205mm Hardwood Saw Blade,205mm Industrial Saw Blade,wood cutting TCT saw blades |
||

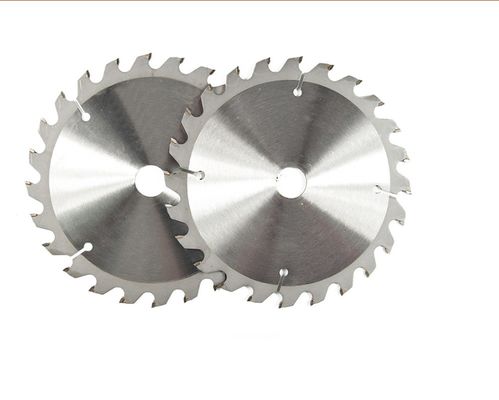

TCT Saw Blade For Cutting Wind Energy Composites
SUNPU offers high quality TCT saw blades for wood cutting. Our company introduces and uses advanced facilities including automatic welding and grinding machines, tension testing and heattreatment facilities, which guarantee high quality TCT saw blades. Meanwhile, we control vertical tolerance within 0.03 mm, radial tolerance within +/-0.03 mm to reduce wobbling during working. Our unique technical process guarantees long cutting life, perfect cutting edge and lower noise.
Feature:
1. This high-speed steel circular saw blade cuts quickly, has long durability and is strong.
2. The negative rake angle design of this iron cutting circular saw blade is suitable for hard materials.
3. This circular cutting blade has a large high-hardness head, a finely ground exterior, and a stable body.
4. The saw blade is suitable for circular saws, miter saws, table saws, radial arm saws, etc.
5. This saw disc is made of high‑speed steel, wear‑resistant, acute, and has a glossy and clean cut surface without burrs.
| 产品编码 | 外径 | 齿宽 | 锯身厚度 | 内孔 | 齿数 | 切削角 | 齿型 | 定位孔 |
| ID | D (mm) | B (mm) | b (mm) | d (mm) | Z | α | T-type | Positioning hole |
| C3001F01 | 300 | 4 | 3 | 30 | 60 | 15 | TP | |
| C3052A02 | 300 | 4 | 3 | 30 | 72 | 15 | TP | |
| C3052B02 | 300 | 4 | 3 | 80 | 72 | 15 | TP | |
| C3029B03 | 300 | 4 | 3 | 30 | 96 | 15 | TP | 2/15/110+4/9/100 |
| C3029C02 | 300 | 4 | 3 | 75 | 96 | 15 | TP | |
| C3001F02 | 300 | 4.4 | 3.2 | 30 | 60 | 15 | TP | |
| C3001D01 | 300 | 4.4 | 3.2 | 80 | 60 | 15 | TP | |
| C3052A01 | 300 | 4.4 | 3.2 | 30 | 72 | 15 | TP | 2/15/110+4/9/100 |
| C3052B01 | 300 | 4.4 | 3.2 | 80 | 72 | 15 | TP | |
| C3029B02 | 300 | 4.4 | 3.2 | 30 | 96 | 15 | TP | 2/15/110+4/9/100 |
| C3029C01 | 300 | 4.4 | 3.2 | 75 | 96 | 15 | TP | |
| C3029A01 | 300 | 4.4 | 3.2 | 80 | 96 | 15 | TP | |
| C3023B01 | 350 | 4 | 3 | 30 | 72 | 15 | TP | |
| C3023A01 | 350 | 4 | 3 | 60 | 72 | 15 | TP | |
| C3023F01 | 350 | 4.4 | 3.2 | 25.4 | 72 | 15 | TP | 2/15/100 |
| C3023B03 | 350 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| C3023A02 | 350 | 4.4 | 3.2 | 60 | 72 | 15 | TP | |
| C3023C01 | 350 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 2/15/100 |
| C3023D03 | 350 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/15/105 |
| C3005C03 | 350 | 4 | 3 | 30 | 84 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C3005A02 | 350 | 4 | 3 | 60 | 84 | 15 | TP | 2/15/100 |
| C3005D01 | 350 | 4.4 | 3.2 | 25.4 | 84 | 15 | TP | |
| C3005C01 | 350 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| C3005A01 | 350 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/15/100 |
| C3005B01 | 350 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| C3005E03 | 350 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C3033A01 | 350 | 4.4 | 3.2 | 25.4 | 96 | 15 | TP | |
| C3033D01 | 350 | 4.4 | 3.2 | 30 | 96 | 15 | TP | |
| C3033B01 | 350 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 4/15/100 |
| C3033F01 | 350 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| C3033C01 | 350 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C3009D01 | 380 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| C3009A03 | 380 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 2/15/100 |
| C3009C01 | 380 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 4/15/105 |
| C3009E01 | 380 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C3004D01 | 380 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| C3004A02 | 380 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/15/100 |
| C3004E01 | 380 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C3041A01 | 380 | 4.4 | 3.2 | 30 | 96 | 15 | TP | |
| C3041B01 | 380 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 2/15/100 |
| C3041C01 | 380 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| C3041D01 | 380 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C3009A01 | 380 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/15/100 |
| C3009E02 | 380 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C3004A01 | 380 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/15/100 |
| C3004E02 | 380 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C3041B02 | 380 | 4.8 | 3.6 | 60 | 96 | 15 | TP | 2/15/100 |
| C3041D02 | 380 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 4/9/100+2/9/110+2/15/110 |
| C4007C02 | 400 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| C4007A01 | 400 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 2/15/100 |
| C4007B01 | 400 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 4/15/105 |
| C4007D01 | 400 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/19/120+2/9/130 |
| C4002F01 | 400 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| C4002A01 | 400 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/15/100 |
| C4002B01 | 400 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| C4002E02 | 400 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/19/120+2/9/130 |
| C4003B01 | 400 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 2/15/100 |
| C4003C01 | 400 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| C4003D01 | 400 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/19/120+2/9/130 |
| C4007E01 | 400 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/15/100+2/15/125 |
| C4007B02 | 400 | 4.8 | 3.6 | 75 | 72 | 15 | TP | 4/15/105 |
| C4002C02 | 400 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/15/100+2/15/125 |
| C4015B01 | 430 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/19/120+2/9/130 |
| C4004A01 | 430 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| C4004A02 | 430 | 4.8 | 3.6 | 75 | 96 | 15 | TP | 4/15/105 |
| C4004B01 | 430 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 4/19/120+2/9/130 |
| C4008A01 | 450 | 4.4 | 3.2 | 30 | 72 | 15 | TP | 2/13/94 |
| C4008B01 | 450 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 2/10/80+2/15/125 |
| C4008C01 | 450 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 2/9/130+4/19/120 |
| C4001A02 | 450 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/10/80+2/15/125 |
| C4001B01 | 450 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| C4001C01 | 450 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 2/9/130+4/19/120 |
| C4008A02 | 450 | 4.8 | 3.6 | 30 | 72 | 15 | TP | 2/13/94 |
| C4008B02 | 450 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/10/80+2/15/125 |
| C4008C02 | 450 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 2/9/130+4/19/120 |
| C4001A01 | 450 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/10/80+2/15/125 |
| C4001C02 | 450 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 2/9/130+4/19/120 |
| C4018A01 | 450 | 4.8 | 3.6 | 60 | 96 | 15 | TP | 2/10/80+2/15/125 |
| C4018B01 | 450 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 2/9/130+4/19/120 |
| C4019B01 | 480 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115+2/19/120 |
| C4019A01 | 480 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 2/9/130+4/19/120 |
| C4020A01 | 480 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115+2/19/120 |
| C4020B01 | 480 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 2/9/130+4/19/120 |
| C5001A01 | 500 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115 |
| C5002A01 | 500 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115 |
| C5003A01 | 520 | 4.8 | 3.6 | 30 | 72 | 15 | TP | 2/13/94 |
| C5003B01 | 520 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115+2/19/120 |
| C5004A01 | 520 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115+2/19/120 |
| C6002A01 | 600 | 5.8 | 4 | 60 | 60 | 15 | TP | 2/11/115+2/19/120 |
| C6003A01 | 600 | 5.8 | 4 | 60 | 72 | 15 | TP | 2/11/115+2/19/120 |
| C6001A01 | 730 | 7 | 5.2 | 80 | 70 | 18 | TP | 2/17/110 |
