| Product Name: | Cnc Milling Cutter Tools | Material: | Tungsten Cobalt Alloy |
|---|---|---|---|
| Type: | End Mill | Coating: | AlTiN, TiAIN, TiCN, Tin |
| Application: | Carbon Steel | HRC: | 45 |
| Advantages: | High Heat Stability | Controlling Mode: | CNC Milling Machine |
| High Light: | D5 carbide end mill 4 flute,D6 carbide end mill 4 flute,solid carbide chamfer mill AlTiN Coating |
||

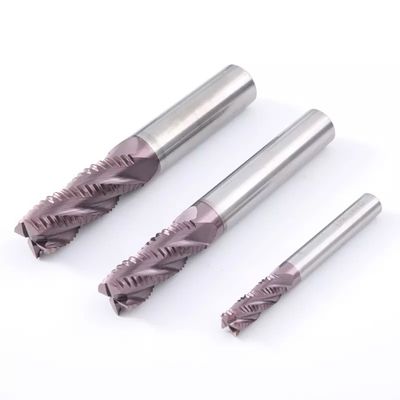

End Mill 4 Flute Hrc45 Coated Milling Cutters For Metal Working Tools
The purpose of a milling cutter is to remove material from a workpiece. With that said, milling cutters don't consist of a single blade. While turning operations performed using a lathe generally feature a single-bladed cutting tool, milling cutters consist of multiple blades. Sharp cutting edge recommended for stainless steel, as well for cutting different steels below 48HRC, such as cast iron. Application for roughing and finishing cutting, drilling, and ramping. Work on any cutting direction with high speed condition.
Products Features:
1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer
2. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily
3. Heat-resistant Coating: With highly heat-resistant HELICA coating, can be used for high-speed processing
4. Bronze Coating: Under bronze coating, any abrasion is easy to be recognized
5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten
6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved
Standard type
| Model No. | Flute Diameter (mm) | Flute length (mm) | Shank Diameter (mm) | Overall length (mm) |
| D1*3*D4*50 | 1 | 3 | 4 | 50 |
| D1.5*4.5*D4*50 | 1.5 | 4.5 | 4 | 50 |
| D2*6*D4*50 | 2 | 6 | 4 | 50 |
| D2.5*7*D4*50 | 2.5 | 7 | 4 | 50 |
| D3*8*D4*50 | 3 | 8 | 4 | 50 |
| D3.5*10*D4*50 | 3.5 | 10 | 4 | 50 |
| D4*10*D4*50 | 4 | 10 | 4 | 50 |
| D5*13*D6*50 | 5 | 13 | 6 | 50 |
| D6*15*D6*50 | 6 | 15 | 6 | 50 |
| D8*20*D8*60 | 8 | 20 | 8 | 60 |
| D10*25*D10*75 | 10 | 25 | 10 | 75 |
| D12*30*D12*75 | 12 | 30 | 12 | 75 |
| D14*45*D14*100 | 14 | 45 | 14 | 100 |
| D16*45*D16*100 | 16 | 45 | 16 | 100 |
| D18*45*D18*100 | 18 | 45 | 18 | 100 |
| D20*45*D20*100 | 20 | 45 | 20 | 100 |
